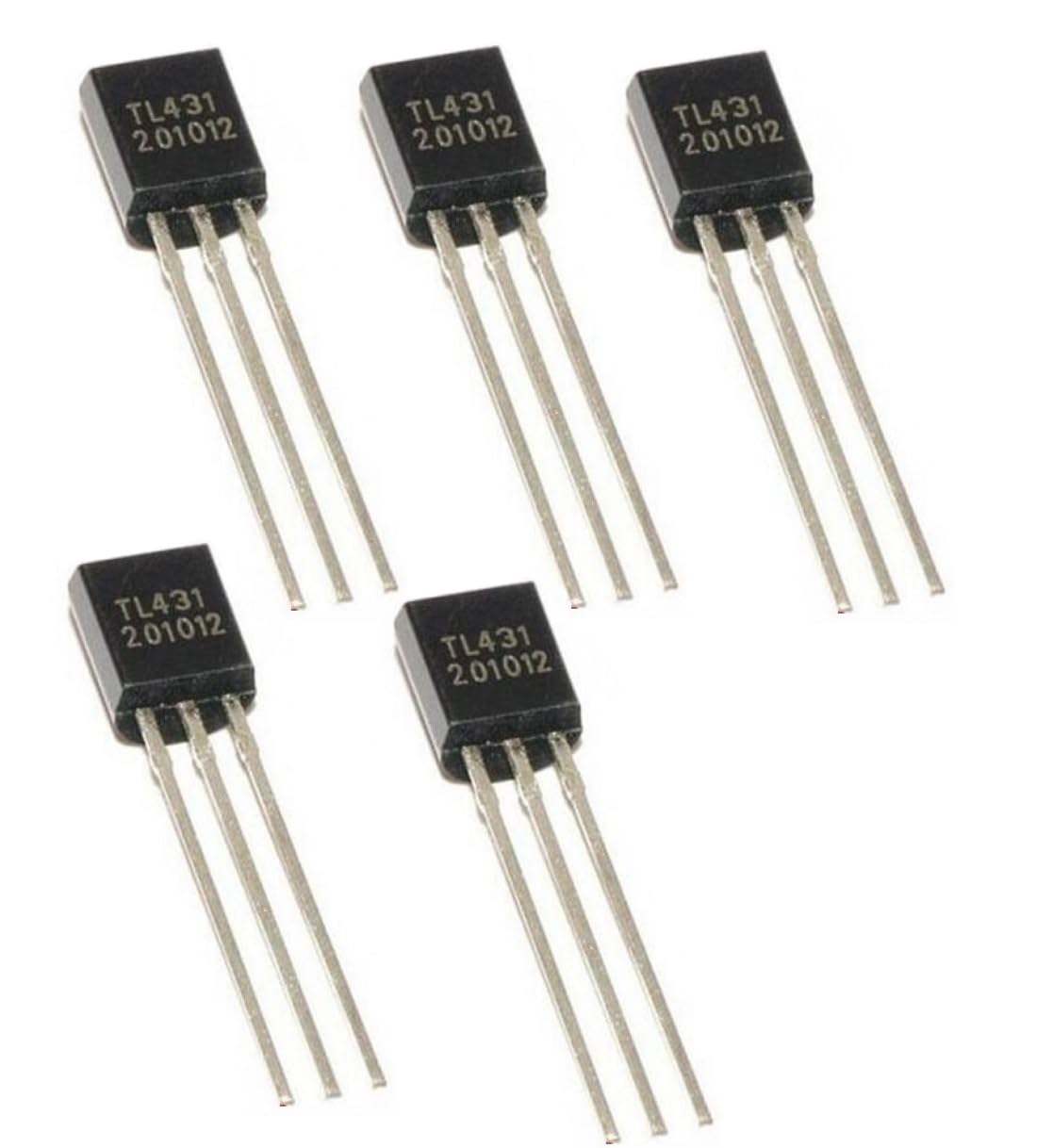

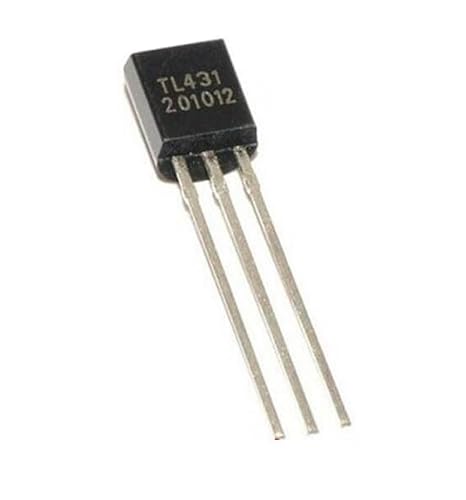

TL431 Adjustable Precision Shunt Regulator – 2.5V to 36V

Upgrade your voltage regulation with the TL431 Adjustable Precision Shunt Regulator, ideal for power supply circuits, voltage references, and switching regulators. Designed for precision and reliability, the TL431 offers an adjustable output voltage ranging from 2.5V to 36V, with excellent temperature stability and low dynamic output impedance.

Key Features:

• Adjustable Output Voltage: 2.5V to 36V

• High Precision: ±0.5% reference voltage tolerance

• Low Output Impedance: Ensures stable voltage reference

• Package Type: TO-92 for easy handling and soldering

• Applications: Power supply regulation, battery chargers, voltage references, and more

Specifications:

• Operating Current: 1 mA to 100 mA

• Reference Voltage: 2.495V (typ.)

• Temperature Range: 0°C to +70°C

• Package: TO-92 (also available in SOT-23 or other packages upon request)

Whether you're a hobbyist, engineer, or repair technician, the TL431 is a must-have component for accurate and stable voltage regulation in a wide variety of electronic circuits.
